Kirby Stylized Rendering

The base of the look is a custom toon shader with hatching-style shading. I'm using line patterns instead of solid shadow colors to give it that hand-drawn feel. The shader supports both directional and point lights, which was important for getting nice rim lighting and colored light effects.

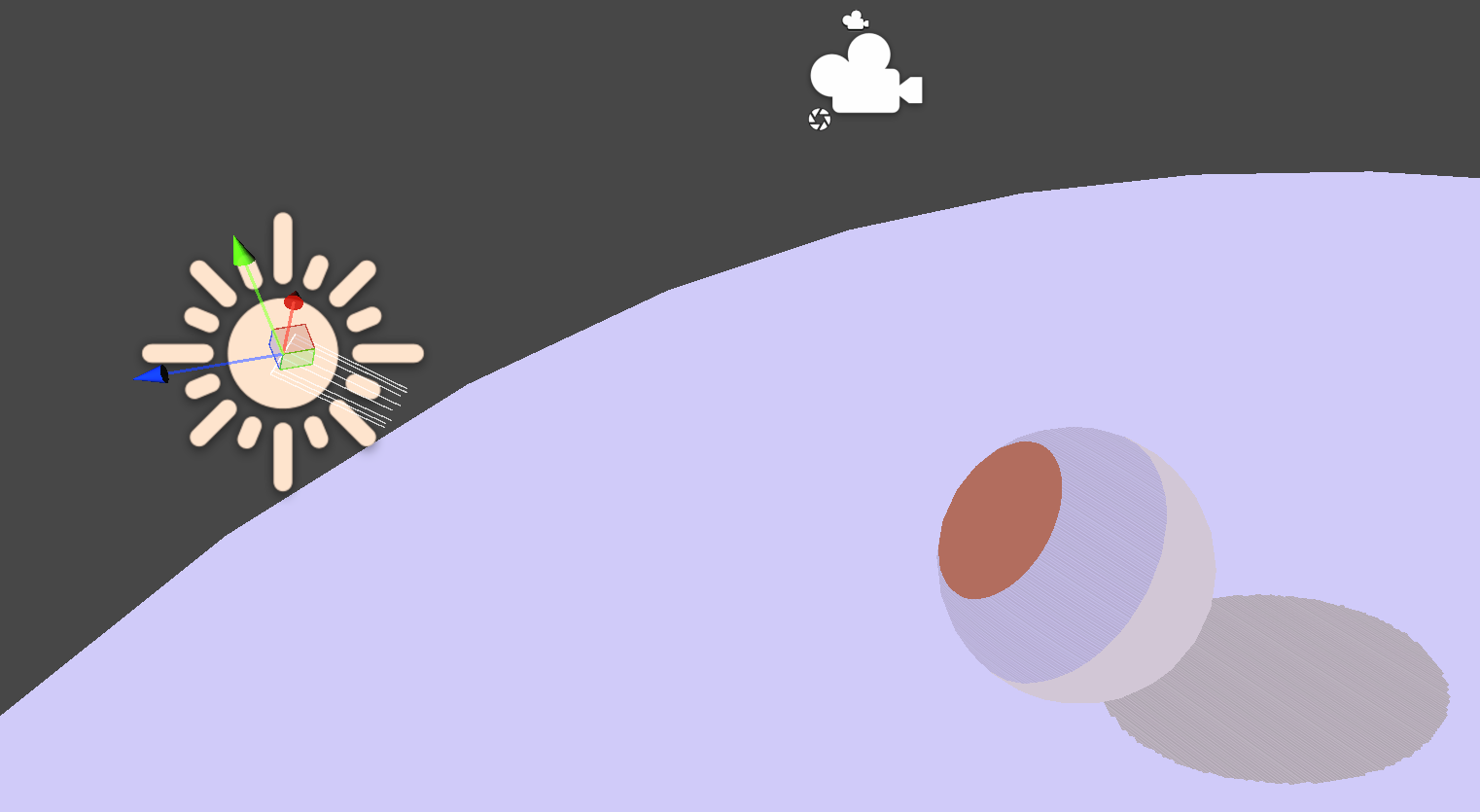

Directional light + hatching

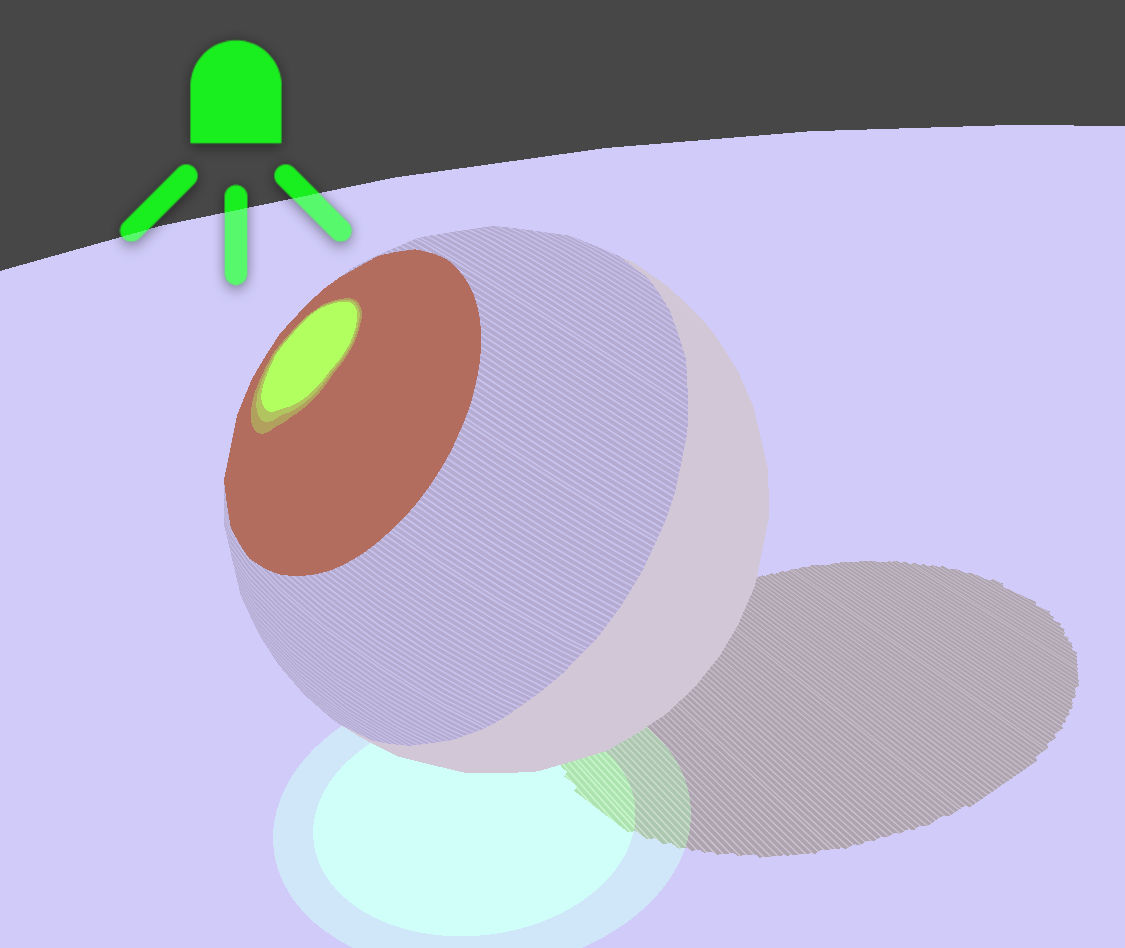

Point light support

URP doesn't give you shadow support out of the box for unlit shaders, so I had to write custom functions to make shadows work. The real challenge was supporting multiple spotlights - each one needed its own shadow map. I went deep into Unity's lighting pipeline to figure out how to sample shadow maps correctly and blend multiple light sources.

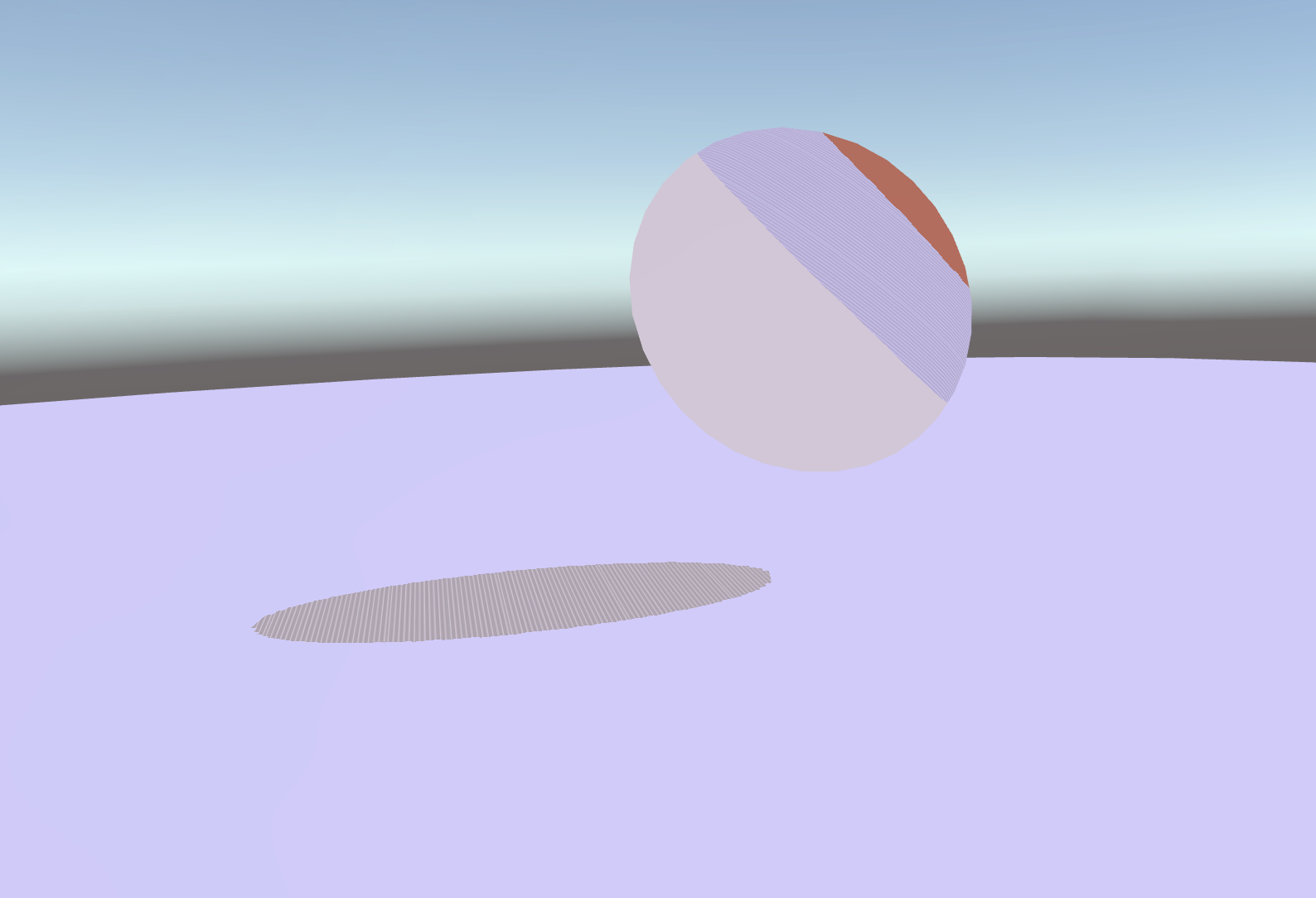

Hatched shadows with custom sampling

For the stars in the background, I used inverted hull rendering to get those thick, colored outlines. It's a classic technique - you render the back faces of the mesh, push them out along the normals, and color them. I set this up as a separate render pass using URP's Render Objects feature with a dedicated layer mask.

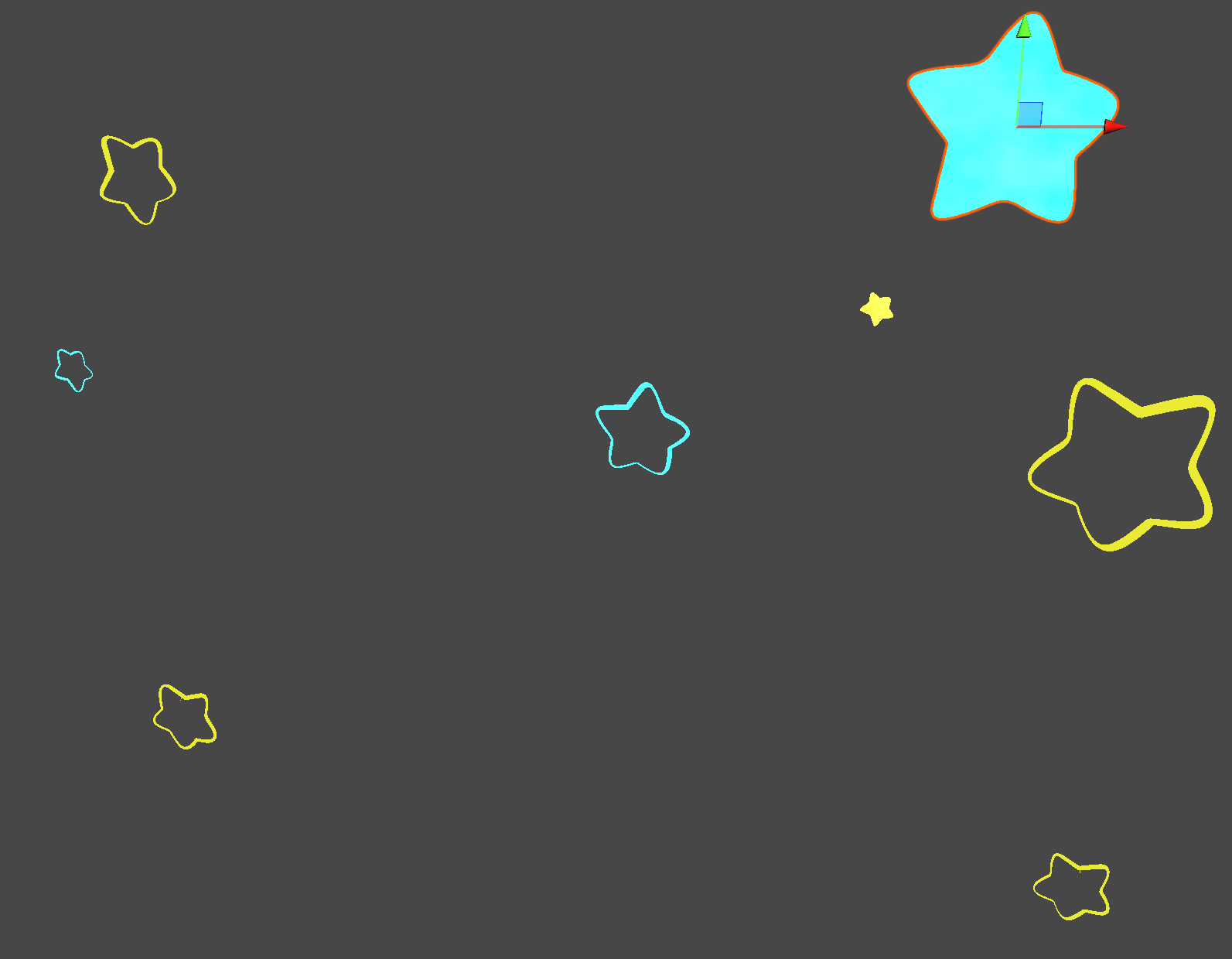

Cyan and yellow stars with inverted hull outlines

I wrote my own rendering pipeline for the outlines using the Sobel edge detection algorithm. I actually implemented two types:

• Depth-based outlines: These detect edges by looking at depth discontinuities - where one object ends and another begins.
• Normal-based outlines: These pick up surface details and inner edges by detecting changes in surface normals.

Combining both gives you that complete hand-drawn outline look where you get both silhouettes and internal details.

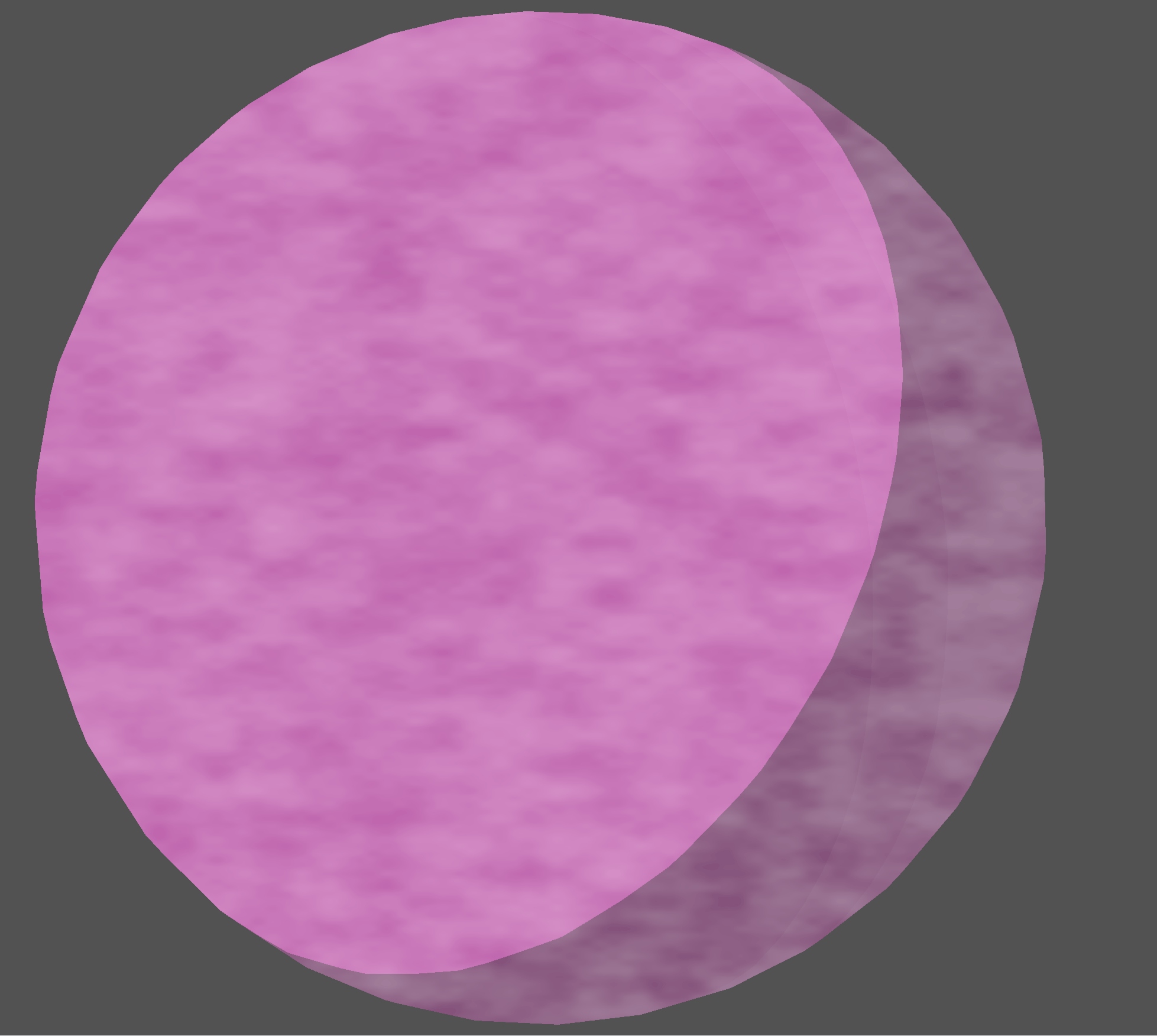

To get that crackling crayon texture, I used a lot of procedural noise. I added noise to the outlines to make them wobbly and imperfect, like they were drawn by hand. The white smudge effect and animated background also use noise with tiling and offset controls.

To pull all this off, I had to stack a ridiculous amount of URP Renderer Features. Each effect needed its own render pass at the right point in the pipeline:

• EdgeDetection: Full screen pass before opaques for Sobel outlines
• NormalFeature: Captures normal buffer for normal-based edge detection
• VignetteMaterial Kirby: Post-processing vignette pass
• Hull: Render Objects pass for inverted hull outlines on "Hulled" layer
• backmat: Background material rendered before everything
• Hulled Yellow: Separate pass for yellow-outlined objects

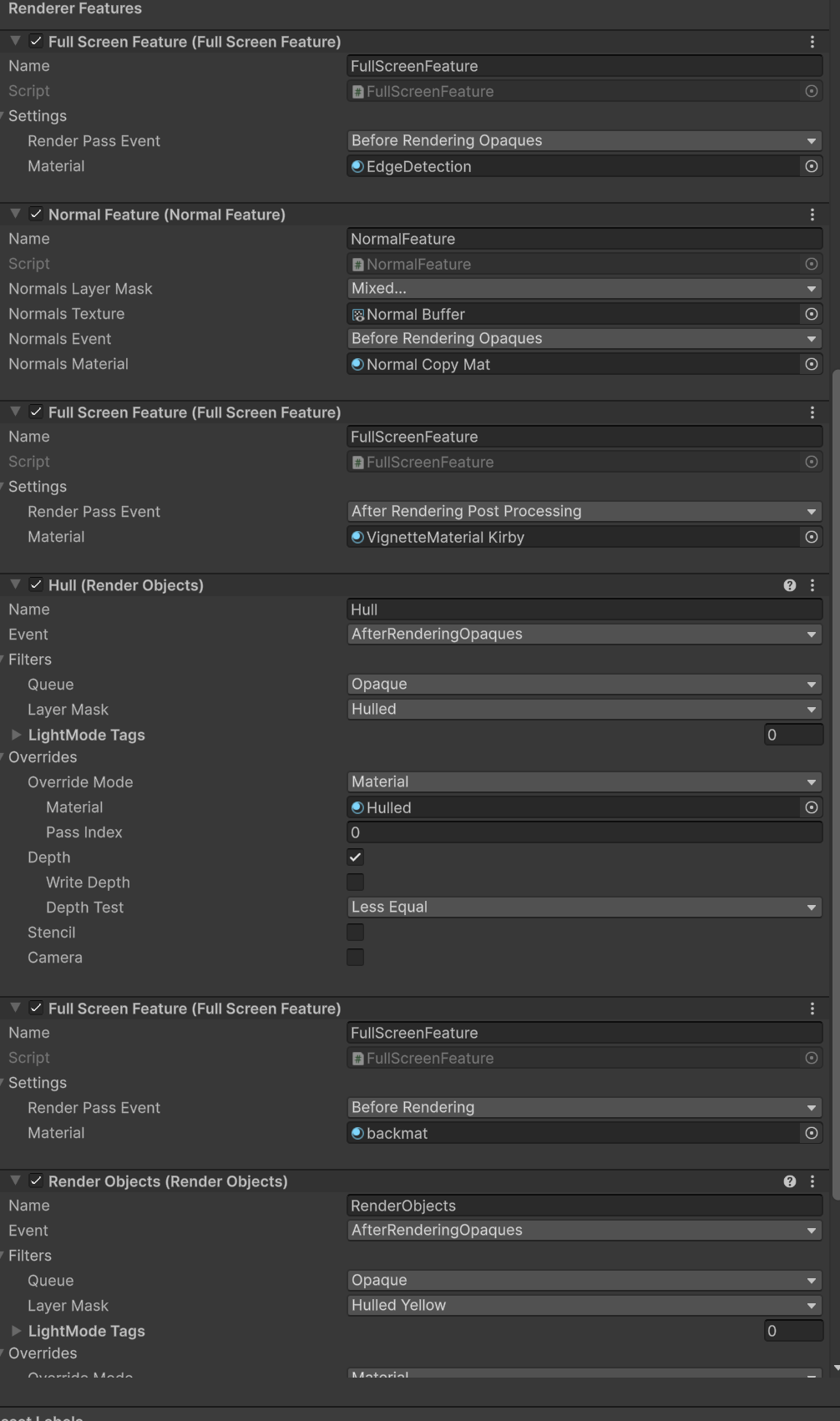

The full render feature stack

Before tackling Kirby, I did a practice render with Sonic to get a feel for the stylized rendering techniques. The idea and mesh came from a UPenn CG lab I found online.

I grabbed an external Kirby model online to save time, but I had to edit it. The original was very low-poly, which caused shadow aliasing issues - you'd see stair-stepping artifacts on the shadows. I had to add more vertices and refine the geometry to get clean shadow edges.
